SPECIFICATIONS

Applications: Suitable for Golfers and Golfing

Brand Name: NONE

High-concerned chemical: none

Measuring range: 5-1000 Yards/1300 Yards

Model Number: N2

Origin: Mainland China

Product name: MINI Golf Rangefinder

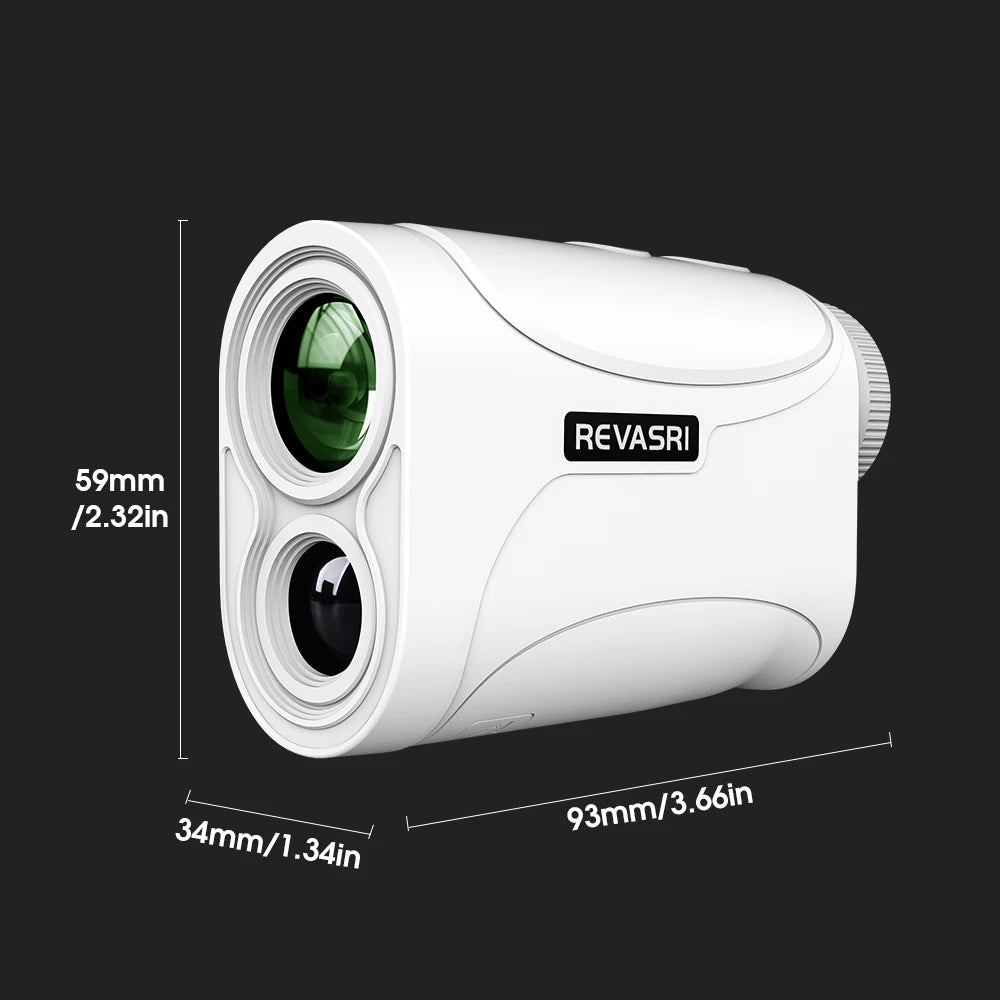

Size: 93*34*59mm/3.66*1.34*2.32inch

Supported units: yd (yard)/ m (meter)/feet

Telescope magnification: 6X magnification

Type: Golf Rangefinder

Working temperature: -20~50 ℃

Precautions:

1. This rangefinder is designed for long-distance measurements, with a minimum measurement distance of 5 meters.

2. Glass can reflect the laser beam and affect measurement results. Do not measure through glass during use.

3. In low-light conditions at night, additional lighting is required to view the readings, as the eyepiece display is not illuminated.

4.It supports 6x magnification, turn the eyepiece knob to achieve optimal clarity.

5.Rain, fog, and dusty conditions may obstruct laser transmission and affect the maximum measurement distance.When measuring objects, select light-colored buildings as the farthest target as possible. Complex vegetation on mountains can obstruct the reflection of laser signals.

Please review these precautions for the rangefinder. We recommend retesting the device outdoors on a target exceeding 5 meters. If you have further questions, feel free to contact us again, and we will respond promptly.

Model：N2 GOLF RANGEFINDER

Measuring distance: 5-1000 Yards/1300 Yards

Unit: meters/yards/feet

Unit switching method: Press and hold the M button for 3 seconds, you can see the unit switching through the eyepiece.

Function:

Mode 1: Straight line distance measurement

Mode 2: Golf Mode

1.Straight line distance

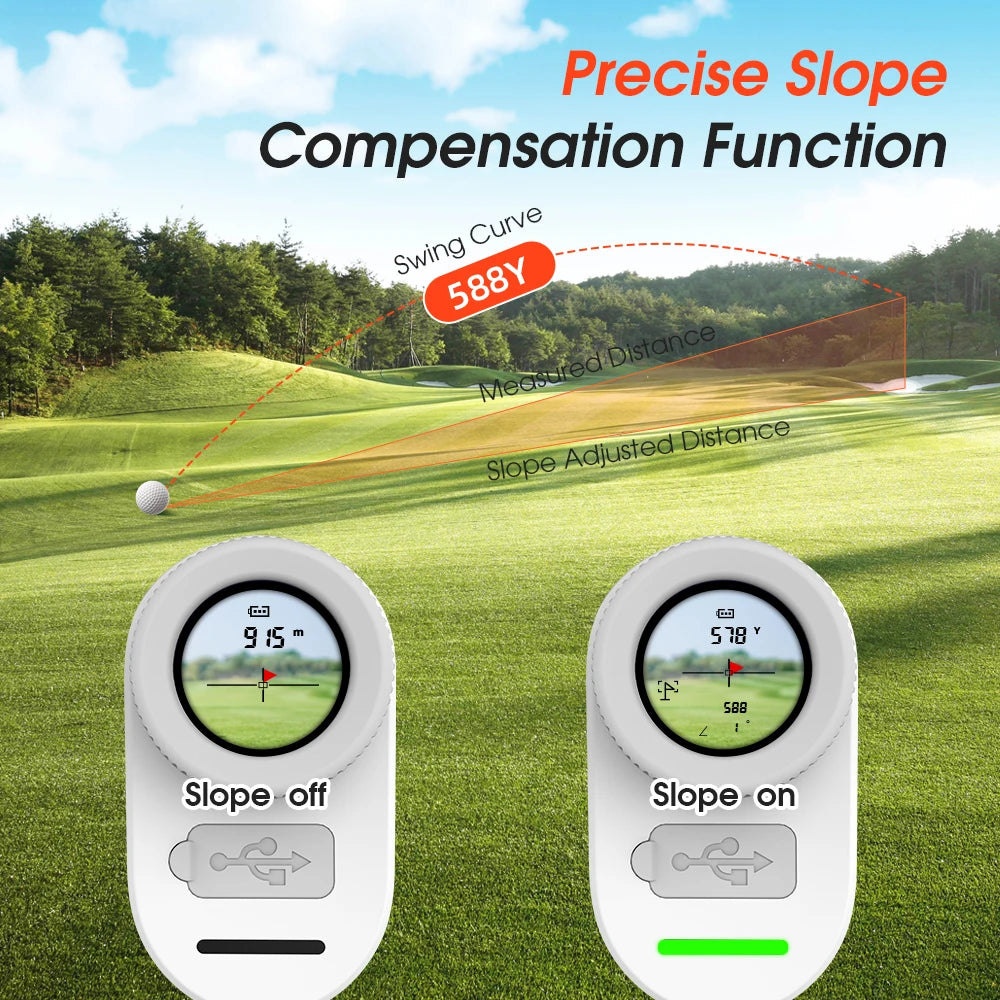

2.Golf slope compensation distance

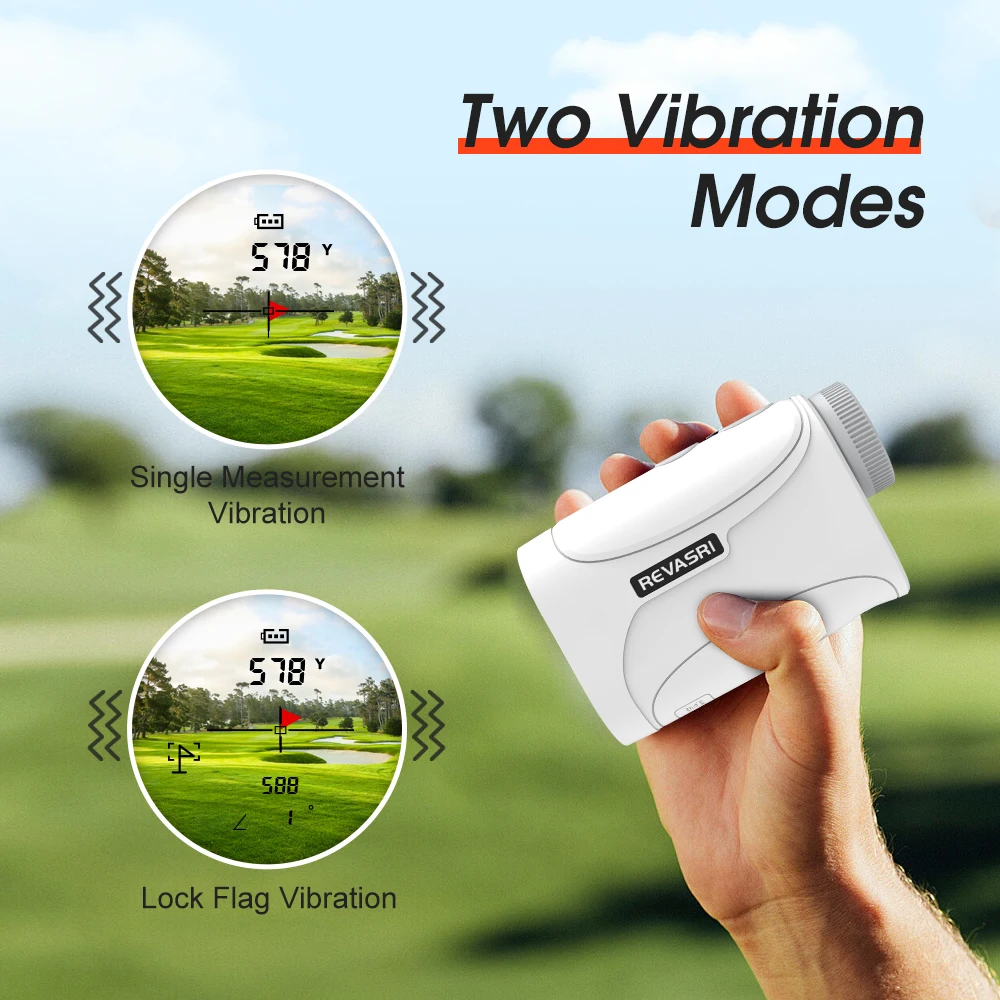

How does the rangefinder cause the lock fag to vibrate?

In Golf Mode.

1. measure the background of the slope behind the flag.

2. Press and hold the Measure button (to enter Scan Mode) and slowly move from the background toward the flag. The rangefinder will recognize the flag and the flag logo will flash and vibrate.

3. The distance to the flag and the slope compensation distance are displayed.

You can try again as mentioned above; if you have any other questions, please do not hesitate to contact me and we will reply to you as soon as possible.
